Rotary Vacuum Drum Filter (RVDF) Manufacturer in India

Leading RVDF manufacturer in India. Continuous filtration for pharma, chemical, sugar & mineral industries

About

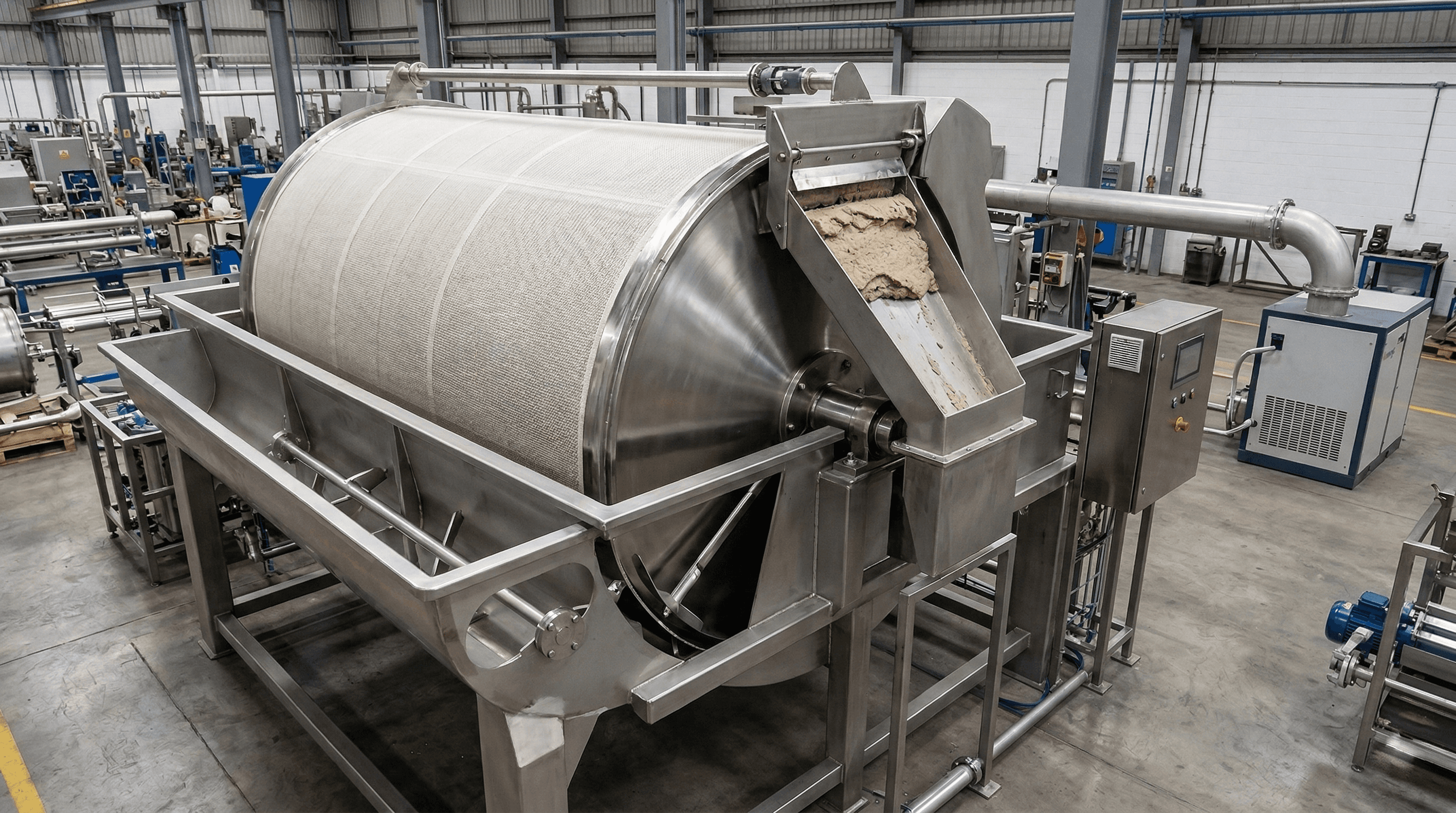

Sharpenn Technologies is a leading manufacturer of Rotary Vacuum Drum Filters (RVDF) in India, providing continuous solid-liquid separation solutions for pharmaceutical, chemical, sugar, mineral processing, and food industries. Our RVDF units feature a cloth-covered rotating drum partially submerged in a slurry trough, with vacuum-driven filtration that enables continuous cake formation, washing, dewatering, and discharge in a single operation. Available in SS304, SS316, and Carbon Steel construction, each RVDF is custom-engineered at our Thane manufacturing facility.

Technical Specifications

Parameter	Specification
Equipment Type	Rotary Vacuum Drum Filter (RVDF)
Drum Diameter	2 ft to 12 ft
Drum Length	Up to 14 ft
Pore Size	Up to 5 microns
Material of Construction	SS304 / SS316 / SS316L / CS / Rubber-lined
Filter Medium	SS wire mesh / Polypropylene cloth / Filter cloth
Operating Mode	Continuous vacuum filtration
Cake Discharge	Scraper / Roll discharge / String discharge / Belt discharge
Drum Speed	Variable (VFD controlled)
Agitator	Inbuilt slow-speed swinging type in trough
Vacuum System	Liquid ring vacuum pump (supplied separately)

Working Principal

The RVDF consists of a cylindrical drum covered with filter medium, partially submerged (approximately one-third) in a semi-circular trough containing the feed slurry. The drum rotates continuously while vacuum is applied internally.

Cake Formation Zone

As the submerged portion rotates through the slurry, vacuum draws liquid through the filter medium, depositing solids as a uniform cake. An inbuilt swinging agitator keeps slurry uniformly suspended.

Cake Formation Zone

As the submerged portion rotates through the slurry, vacuum draws liquid through the filter medium, depositing solids as a uniform cake. An inbuilt swinging agitator keeps slurry uniformly suspended.

Dewatering Zone

As the drum emerges, continued vacuum draws residual moisture. Optional wash sprays can be applied.

Dewatering Zone

As the drum emerges, continued vacuum draws residual moisture. Optional wash sprays can be applied.

Cake Drying Zone

Atmospheric pressure acts on the outer cake surface while vacuum continues internally, maximizing moisture removal.

Cake Drying Zone

Atmospheric pressure acts on the outer cake surface while vacuum continues internally, maximizing moisture removal.

Cake Discharge Zone

At approximately the three o'clock position, dried filter cake is removed using a scraper blade, roll discharge, string discharge, or belt discharge — selected based on cake characteristics.

Cake Discharge Zone

At approximately the three o'clock position, dried filter cake is removed using a scraper blade, roll discharge, string discharge, or belt discharge — selected based on cake characteristics.

Key Features & Industry Applications

Key Features

Applications by industry

Continuous operation — Filtration, washing, drying, and discharge happen simultaneously in different zones

Pharmaceutical & API: API filtration, product recovery from crystallization, fermentation broth processing. Gas-tight models for solvent-based operations.

Handles high solid concentrations — Effective for slurries that would quickly blind batch filters

Chemical & Petrochemical: Catalyst recovery, precipitation product filtration, pigment dewatering, continuous clarification.

Variable drum speed — VFD-controlled rotation allows optimization of cake thickness and moisture content

Sugar & Distillery: Mud filtration in sugar mills, cane juice clarification. High-capacity models for seasonal crushing.

Inbuilt trough agitator — Prevents solid settling, ensures uniform cake formation

Mineral Processing: Dewatering of mineral concentrates, iron ore fines filtration, beneficiation.

Multiple discharge options — Scraper, roll, string, or belt for different cake characteristics

Food & Beverage: Juice clarification, beer/wine production, edible oil processing.

Pre-coat and direct filtration modes — Pre-coat for fine particle removal; direct for bulk solids recovery

Low energy consumption — Vacuum-based operation is efficient for high-volume applications

Why choose Sharpenn

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.
