Rotary Pressure Leaf Filter (HRPLF) Manufacturer in India

Manufacturer of Horizontal Rotary Pressure Leaf Filters for continuous filtration. Edible oil, chemical & sugar industries.

Get free quote

About

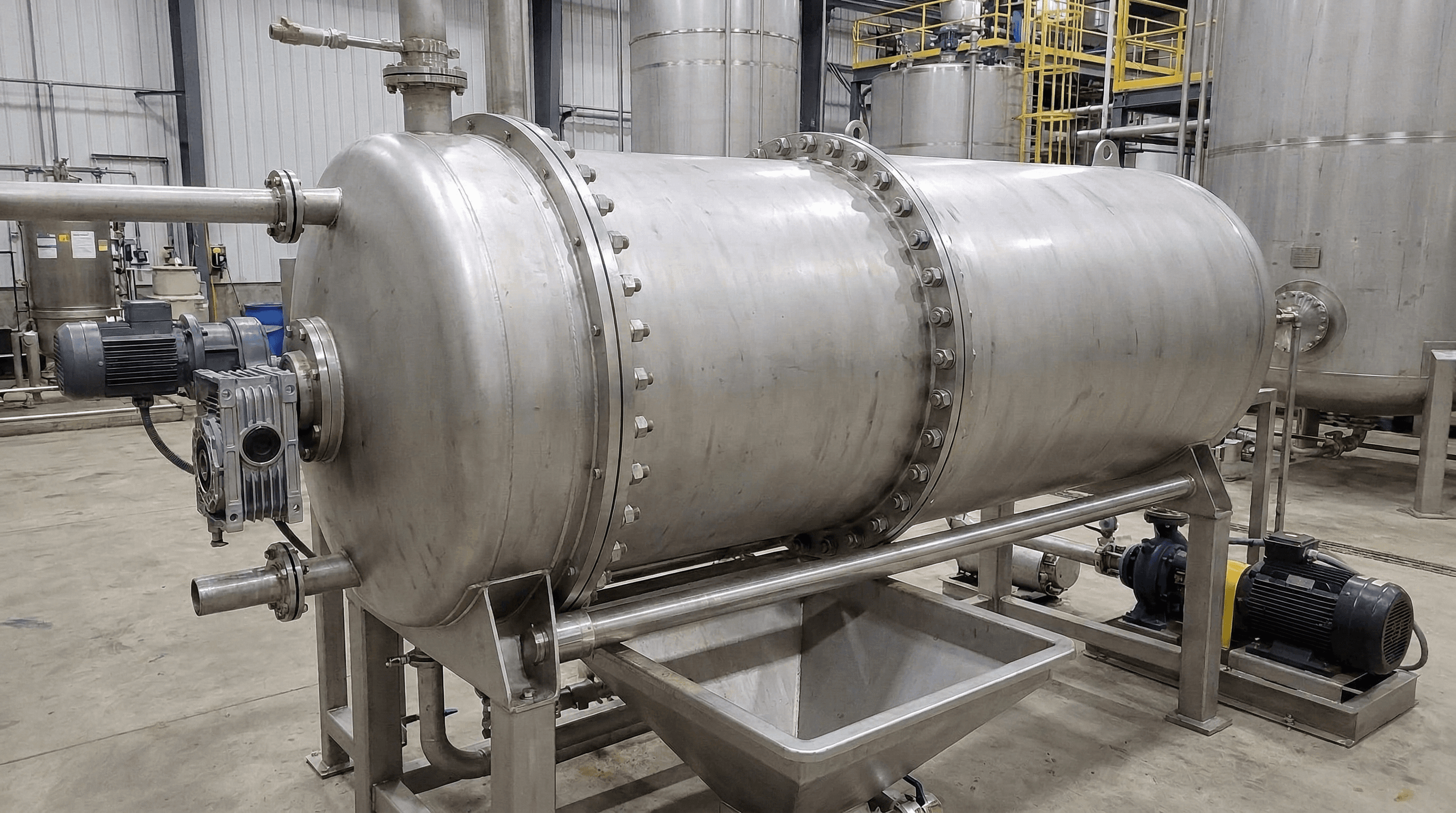

Sharpenn Technologies manufactures Horizontal Rotary Pressure Leaf Filters (HRPLF) for industries requiring continuous, high-volume filtration with automated operation. The HRPLF consists of a horizontal cylindrical vessel, dished on both ends, housing a nest of filter discs spaced apart on a single rotating shaft. Unlike static leaf filters, the rotating leaf assembly enables continuous filtration under positive or vacuum pressure with automated cake removal. Manufactured at our Thane facility in SS304, SS316, and Carbon Steel.

Technical Specifications

Parameter	Specification
Equipment Type	Horizontal Rotary Pressure Leaf Filter (HRPLF)
Filtration Area	5 sq.m to 80 sq.m
Material of Construction	SS304 / SS316 / CS
Vessel Design	Horizontal cylindrical, dished on both ends
Head Design	Fixed head + retractable shell with locking arrangement
Leaf Assembly	Filter discs mounted on centrally located rotating manifold
Operating Mode	Positive pressure or vacuum
Cake Removal	Automatic — centrifugal discharge during leaf rotation

Working Principal

The HRPLF operates with circular filter discs mounted on a central rotating shaft inside a pressure-rated horizontal vessel. During filtration, the leaf assembly remains static while feed suspension is pumped through under pressure. Solids are retained on the discs while clear filtrate passes through the central manifold.

Once filtration is complete and cake has built up, the leaf assembly is rotated. The rotation creates centrifugal force that dislodges cake from disc surfaces, discharging it through the bottom of the vessel.

Seamless support from prototype development to full-scale production runs efficiently.

Key Features & Industry Applications

Key Features

Applications by industry

Continuous or semi-continuous operation — Automated cycle reduces batch turnaround time

Edible Oil: Bleaching earth removal, dewaxing filtration, and winterization in large-capacity refineries.

Centrifugal cake discharge — No manual scraping or vibrator needed

Sugar & Distillery: Continuous clarification of sugar syrup, cane juice filtration, distillery process streams.

Fully enclosed, pressure-rated vessel — Suitable for hazardous or volatile liquids

Chemical: High-volume clarification, catalyst recovery, intermediate product filtration.

High throughput per footprint — Multiple discs provide large filtration area in compact space

Starch & Derivatives: Starch slurry filtration and fiber removal in wet milling operations.

Reduced labor requirement — Automated operation needs minimal intervention
