Mixing Vessel Manufacturer in India

Industrial mixing vessel manufacturer. SS304/316 mixing tanks for pharma, chemical, food & cosmetic industries. Jacketed.

Get free quote

About

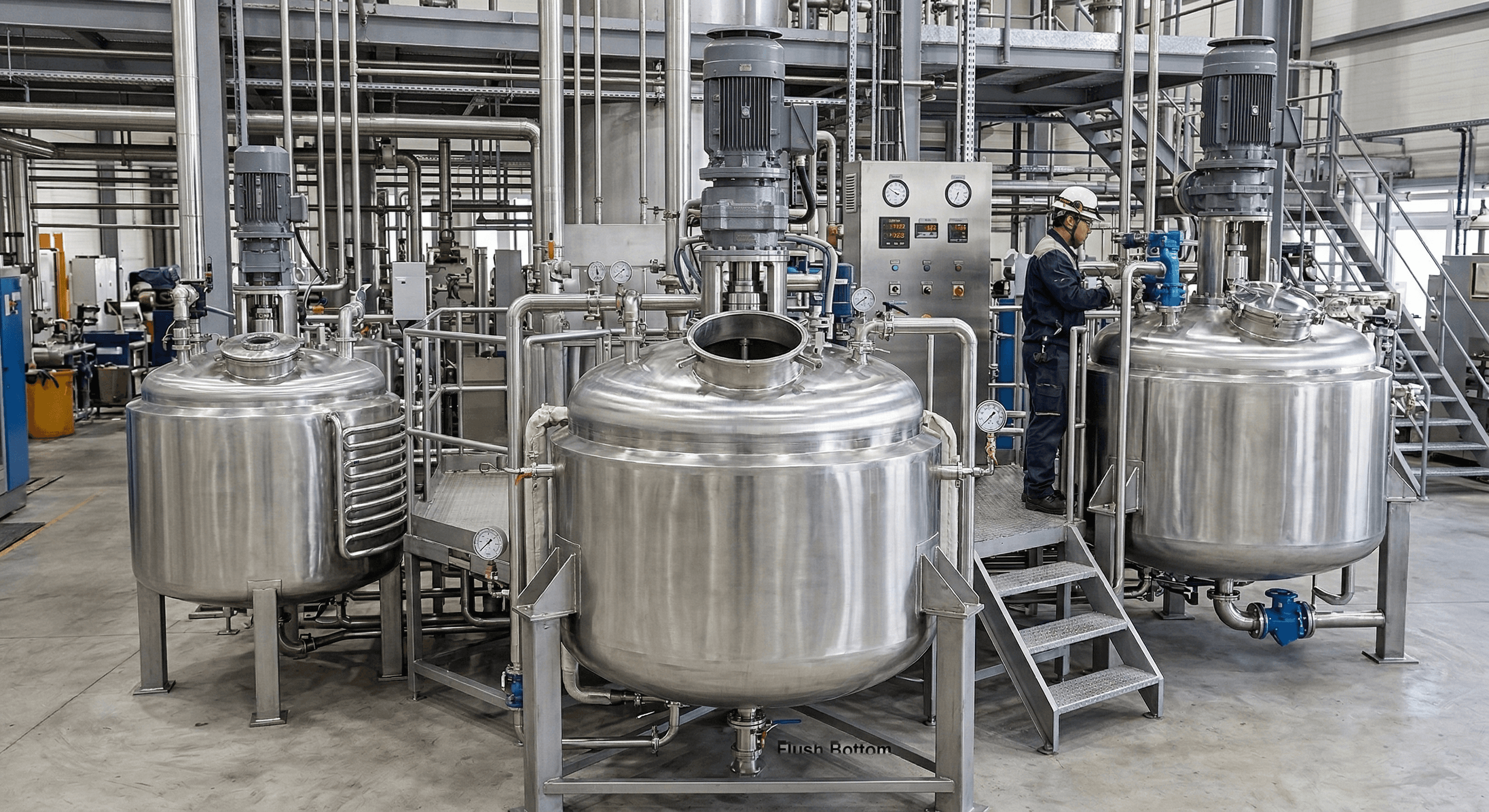

Sharpenn Technologies manufactures industrial mixing vessels and blending tanks for homogeneous mixing of liquids, dissolution of solids, and preparation of solutions, suspensions, and emulsions across pharmaceutical, chemical, food processing, and cosmetic industries. Available in SS304, SS316, SS316L, and Carbon Steel with capacities from small batches to large industrial volumes. Each vessel features appropriately selected agitator type, optional jacketing for temperature control, and construction designed for easy cleaning. Manufactured at our Thane, Maharashtra facility since 1994.

Technical Specifications

Parameter	Specification
Equipment Type	Mixing Vessel / Blending Tank / Stirred Tank
Material of Construction	SS304 / SS316 / SS316L / CS
Capacity Range	0.5KL to 20KL
Agitator Types	Paddle / Anchor / Propeller / Turbine / Ribbon
Jacket Options	Conventional jacket / Limpet coil / Half-pipe coil
Heating/Cooling Medium	Steam / Hot water / Thermic fluid / Chilled water
Top Head	Flat / Dished / Torispherical
Bottom	Flat / Conical / Dished
Sealing	Mechanical seal / Stuffing box
Surface Finish	Standard industrial / Mirror polished (pharma grade)
Outlet	Ball valve / Butterfly valve / Flush bottom valve

Working Principal

Cylindrical tank with centrally-mounted agitator driven by electric motor through gearbox. Agitator type selected based on viscosity and mixing intensity.

Low-viscosity (water-like): Propeller or turbine agitators for high-shear mixing. Medium-viscosity (syrups): Paddle agitators for effective blending. High-viscosity (pastes): Anchor or ribbon agitators sweep entire volume.

Optional jacket allows heating or cooling during mixing — essential for dissolution processes or exothermic mixing.

Key Features & Industry Applications

Key Features

Applications by industry

Application-specific agitator selection — Matched to your process viscosity and requirements

Pharmaceutical: Syrup preparation, solution mixing, suspension and ointment/cream preparation. cGMP design.

Jacketed for temperature control — Heat or cool during mixing

Chemical: Chemical solution preparation, reagent mixing, dye dissolution.

Multiple bottom options — Conical for drainage; flat for settling

Food & Beverage: Sauce preparation, juice blending, flavoring dissolution, dairy mixing.

Pharma-grade finish available — Electropolished SS316L for cGMP

Cosmetics & Personal Care: Lotion, cream, shampoo, gel preparation with controlled temperature.

Why choose Sharpenn

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.
