Industrial Hydrocyclone Manufacturer in India

Industrial hydrocyclone manufacturer. No moving parts. Liquid-solid separation for mining, chemical, starch & water treatment.

Get free quote

About

Sharpenn Technologies manufactures industrial hydrocyclones for efficient liquid-solid separation and particle classification. The hydrocyclone has no moving parts — feed slurry is pumped in at high pressure through a tangential inlet, creating a high-speed spin that generates centrifugal forces separating particles by size and density. This makes it extremely reliable, low-maintenance, and ideal for continuous operation. Manufactured in SS304, SS316, and wear-resistant materials at our Thane facility for mineral processing, starch manufacturing, water treatment, chemical processing, and pulp & paper industries.

Technical Specifications

Parameter	Specification
Equipment Type	Hydrocyclone (Liquid-Solid Separation / Classification)
Moving Parts	None
Operating Principle	High-pressure tangential inlet creates centrifugal separation
Material of Construction	SS304 / SS316 / Polyurethane-lined / Ceramic-lined
Feed Pressure	Application-dependent
Separation	Coarse particles → underflow (bottom); Fine particles + liquid → overflow (top)
Configuration	Single unit or multi-cyclone cluster

Working Principal

Consists of a cylindrical section (top) connected to a conical section (bottom). Feed slurry is pumped tangentially into the cylindrical section at high pressure.

Tangential entry creates a rapid vortex. Centrifugal force pushes heavier/larger particles toward the wall and downward through the cone to the underflow (spigot). Lighter/finer particles with most liquid travel upward in an inner vortex to the overflow (vortex finder).

Performance is controlled by adjusting feed pressure, cyclone geometry, and underflow/overflow configurations. Multiple cyclones can be installed in series or parallel.

Key Features & Industry Applications

Key Features

Applications by industry

No moving parts — Extremely reliable, minimal maintenance, long life

Mining & Mineral Processing: Mineral slurry classification, desliming, tailing treatment, fine particle recovery.

High throughput — Large volumes in small physical footprint

Starch Manufacturing: Starch-fiber separation, starch washing, concentration in wet milling. Essential equipment.

Low energy requirement — Only a feed pump needed; no motor on cyclone itself

Wastewater Treatment: Suspended solids removal, oil-water separation, grit removal in ETP systems.

Effective particle classification — Separates coarse from fine by cut-point size

Chemical Processing: Catalyst recovery, product classification, reaction slurry separation.

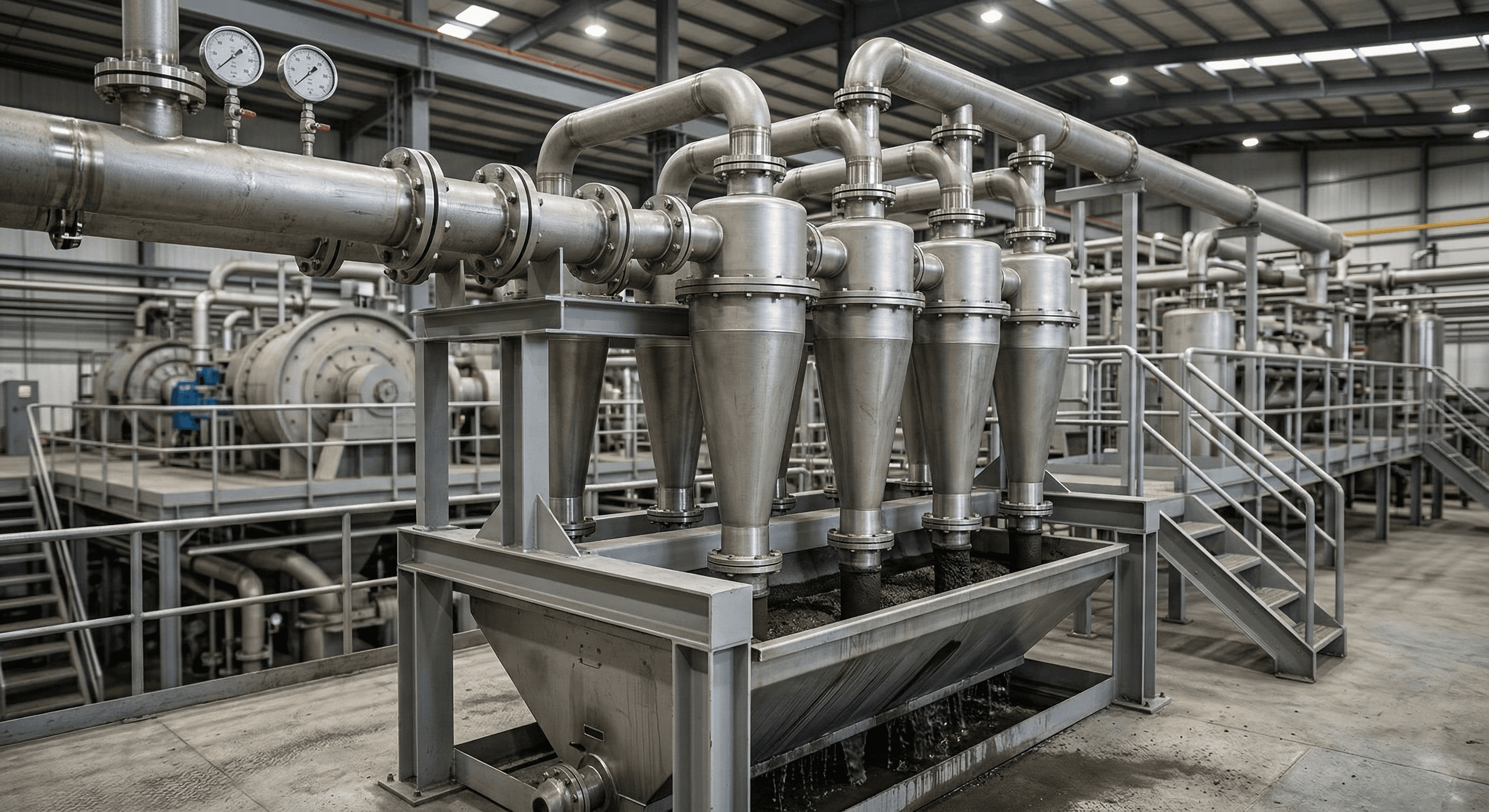

Series/parallel installation — Multi-cyclone clusters for improved separation

Pulp & Paper: Fiber classification, cleaner systems, reject separation.

Wear-resistant options — Polyurethane or ceramic lining for abrasive slurries

Why choose Sharpenn

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.
