Horizontal Pressure Leaf Filter Manufacturer in India

Manufacturer of Horizontal Pressure Leaf Filters for chemical, pharma & oil industries. Shell retraction where the duty needs it. SS304/316.

Get free quote

About

Sharpenn Technologies manufactures Horizontal Pressure Leaf Filters (HPLF) at our facility in Thane, Maharashtra, for industries requiring high-capacity filtration with easy access to filter elements. Where the duty calls for it, our horizontal leaf filters can be built with a retractable shell and wedge-lock closure, allowing the filter housing to slide away from the leaf assembly for quick inspection, cleaning, and maintenance. Available in SS304, SS316, SS316L, and Carbon Steel construction, these filters are widely used in chemical processing, pharmaceutical manufacturing, edible oil refining, fertilizer production, and food processing.

Technical Specifications

Parameter	Specification
Equipment Type	Horizontal Pressure Leaf Filter (HPLF)
Filtration Area	Sized to your duty
Material of Construction	SS304 / SS316 / SS316L / CS / Rubber-lined / PP-lined
Shell Design	Retractable shell with wedge-lock closure, where the duty calls for it
Design Pressure	Rated up to 10 bar
Filter Leaf Construction	Filter media selected to suit the application, on leaves mounted vertically on a horizontal manifold
Cake Discharge	Dry (pneumatic vibrator where the duty calls for it) / Wet (sluice header) / Manual removal
Sealing	O-Ring (Viton / EPDM / Nitrile / Silicon)
Orientation	Horizontal cylindrical vessel

Working Principal

The HPLF operates on the same pressure filtration principle as the vertical variant, but with the vessel oriented horizontally and filter leaves mounted vertically inside the horizontal shell.

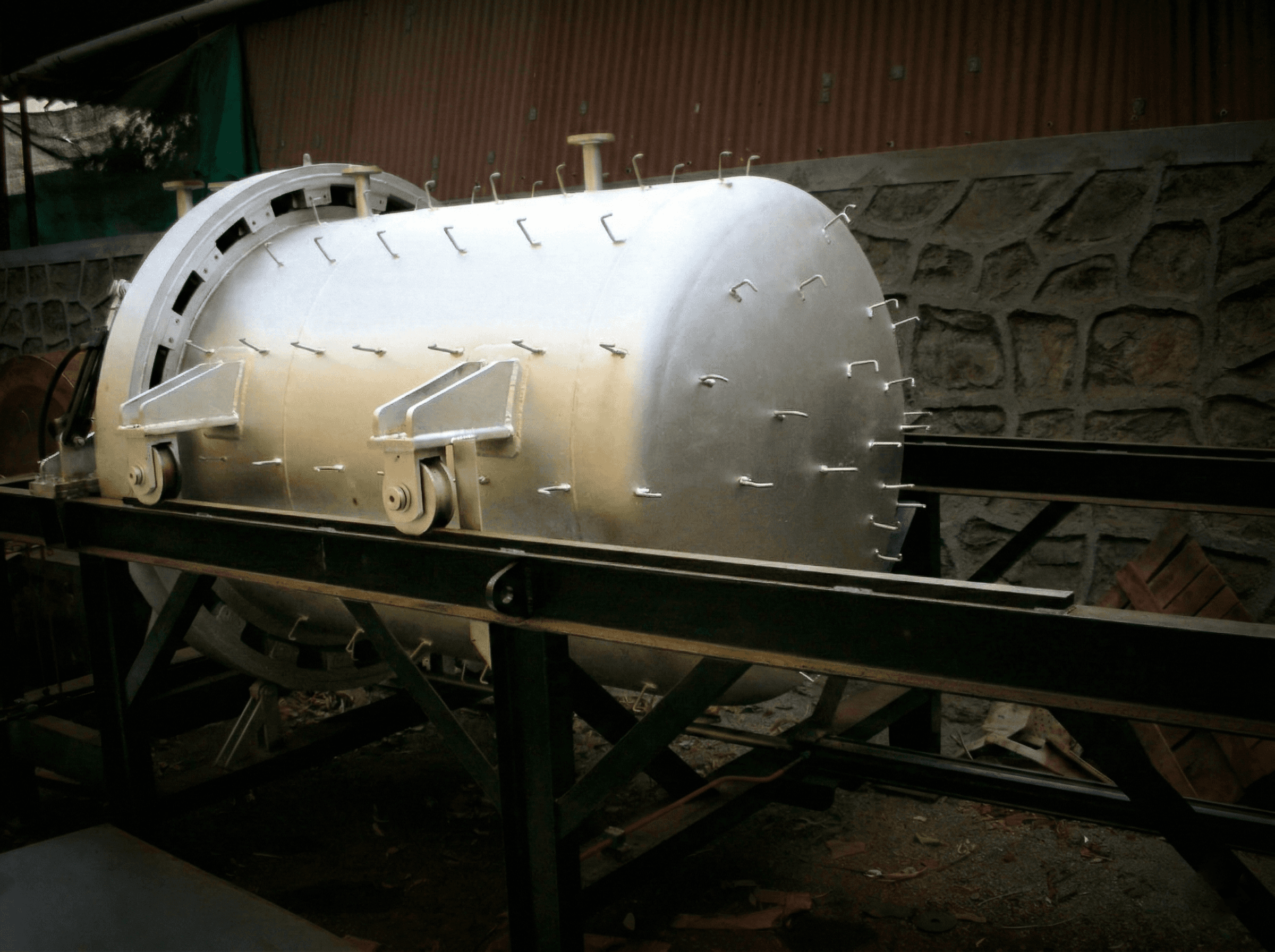

The feed slurry enters the horizontal vessel under pressure. Liquid passes through the filter leaves while solids are retained as cake. Where a retractable shell is fitted, the vessel housing slides hydraulically or mechanically along rails to expose the entire leaf assembly, allowing complete access for inspection, cleaning, and leaf replacement without disturbing piping connections.

This design is particularly advantageous when the filter cake is sticky, difficult to dislodge by vibration alone, or when visual inspection of cake formation is required between batches. The horizontal orientation also accommodates larger filtration areas than equivalent vertical models.

Key Features & Industry Applications

Key Features

Applications by industry

Retractable shell where the duty calls for it: Full access to filter leaves for inspection, cleaning, and maintenance without disconnecting process piping

Chemical Processing: Large-volume clarification of intermediates, catalyst recovery from reaction slurries, solvent purification where high throughput is required.

Wedge-lock closure: Quick, secure sealing mechanism that reduces batch turnaround time

Edible Oil Refining: Bleaching earth filtration in large oil refineries processing 50+ TPD.

Larger capacity per unit: Horizontal orientation accommodates larger filtration areas

Pharmaceutical: Bulk API filtration where large batch sizes require high filtration area and cake inspection between batches is a GMP requirement.

Versatile cake discharge: Options for dry vibrator, wet sluice, or manual removal

Fertilizer Industry: Filtration of process streams in phosphoric acid, urea, and other fertilizer manufacturing.

Suitable for sticky/cohesive cakes: Where vertical filter vibrator discharge is unreliable
