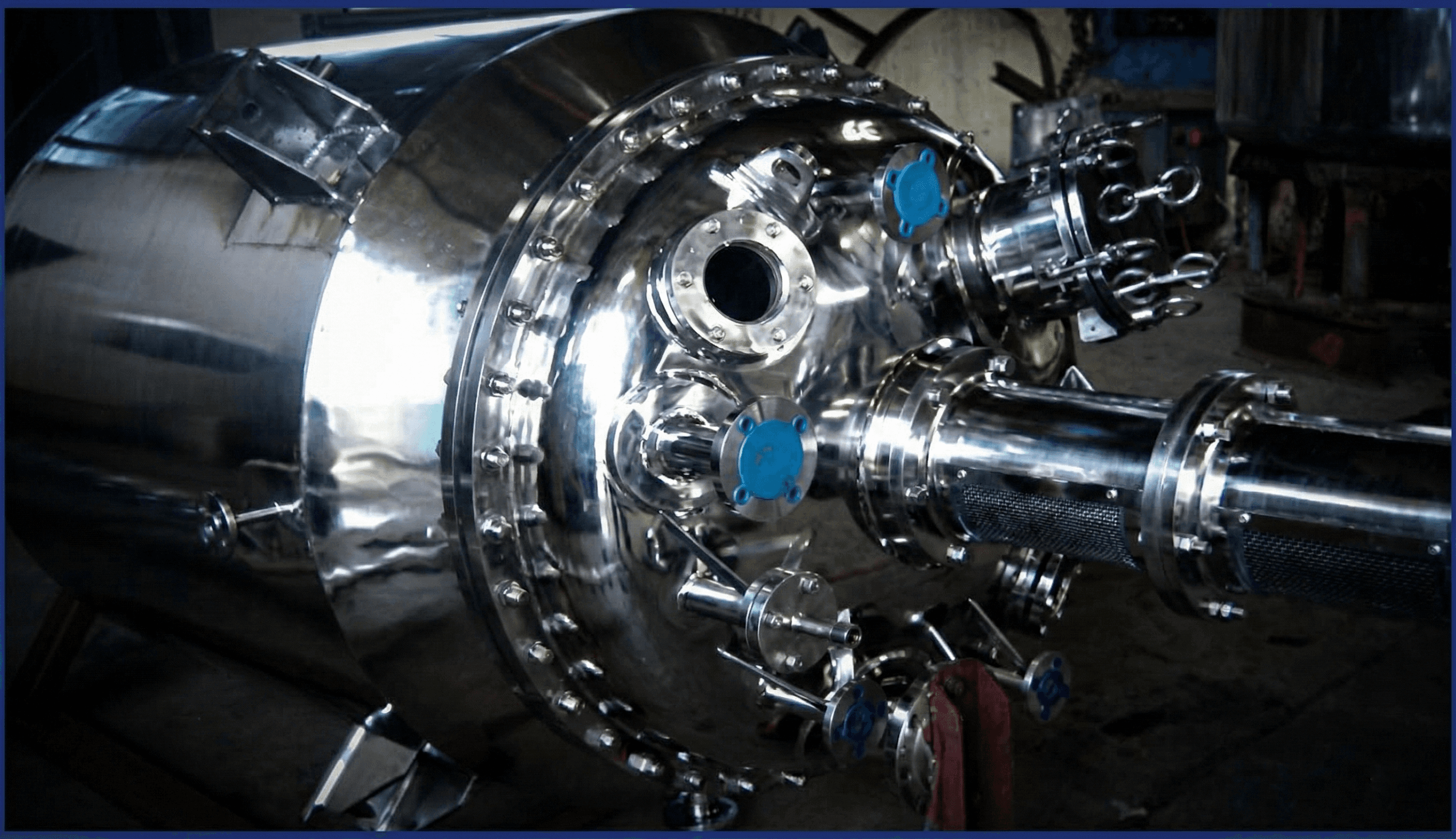

Chemical Reactor (SS304/316)

Chemical reactor manufacturer. SS304/316/Hastelloy. Jacketed reactors for pharma, chemical & food. Custom design.

About

Sharpenn Technologies manufactures chemical reactors — process vessels in high-resistance alloys and stainless steel for carrying out chemical reactions under controlled conditions. Available in SS304, SS316, SS316L, Carbon Steel, and exotic alloys including Hastelloy, Monel, Inconel, and Titanium, with sizes from lab scale to large industrial capacity. Reactor design is determined by reaction thermodynamics and kinetics, with configurations optimized for exothermic reactions requiring rapid heat removal. Manufactured at our Thane facility with in-house design, fabrication, and testing.

Technical Specifications

Parameter	Specification
Equipment Type	Chemical Reactor (Batch / Continuous)
Material of Construction	SS304 / SS316 / SS316L / CS / Hastelloy / Monel / Inconel / Titanium
Reactor Types	Stirred tank, jacketed, limpet coil, internal coil
Design Pressure	3-6 kg/cm² standard; higher on request
Temperature Control	Jacket / Limpet coil — steam, hot water, thermic fluid, chilled water
Agitator Options	Anchor, paddle, turbine, propeller — application-dependent
Drive	Top / Bottom-mounted electric motor with gearbox
Sealing	Mechanical seal / Stuffing box / Magnetic drive
Standards	IS 2825 / ASME Section VIII

Working Principal

Batch Operation:

Reactants are charged, heated/cooled to required temperature via the jacket, and agitated for the specified time. The jacket provides precise temperature control — critical for exothermic reactions where heat must be removed quickly to prevent runaway.

Batch Operation:

Agitation:

Design selected based on viscosity and mixing requirements. Low-viscosity: turbine/propeller. High-viscosity: anchor/paddle.

Agitation:

Design selected based on viscosity and mixing requirements. Low-viscosity: turbine/propeller. High-viscosity: anchor/paddle.

Temperature Control:

Jacket circulates heating medium (steam, thermic fluid) for endothermic reactions or cooling medium (chilled water, brine) for exothermic reactions.

Temperature Control:

Jacket circulates heating medium (steam, thermic fluid) for endothermic reactions or cooling medium (chilled water, brine) for exothermic reactions.

Key Features & Industry Applications

Key Features

Applications by industry

Custom-designed for your specific reaction — Geometry, MOC, agitator, and jacket matched to your chemistry

Pharmaceutical & API: Synthesis reactors, crystallization vessels, hydrogenation reactors. cGMP design available.

Exotic alloy capability — Hastelloy, Monel, Inconel, Titanium for highly corrosive environments

Chemical & Petrochemical: Chemical synthesis, polymerization, sulfonation, nitration.

Optimized heat transfer — Jacket design matched to reaction thermodynamics

Food Processing: Cooking kettles, blending reactors, temperature-controlled mixing.

Multiple sealing options — Mechanical seal for high-pressure/hazardous; stuffing box for standard

Agrochemical: Pesticide, herbicide, fertilizer intermediate synthesis.

Multiple sealing options — Mechanical seal for high-pressure/hazardous; stuffing box for standard

Paints & Pigments: Paint base, resin, and pigment production.

Code-compliant design — IS 2825 and/or ASME standards for safe, insurable operation

Why choose Sharpenn

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

Custom Engineering, Not Off-the-Shelf

Every unit is designed to your process specs. MOC, capacity, pressure rating, and footprint are tailored to your plant — not forced into standard models.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

In-House Manufacturing, Full Control

From raw material procurement to final inspection everything happens at our Shahpur facility under GMP protocols. No outsourced fabrication.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

30+ Years, One Focus

Since 1994, we’ve done one thing build reliable process equipment. Most of our orders come from repeat clients. That says more than any brochure.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.

After-Sales That Actually Shows Up

Dedicated team of engineers and technicians for installation support, maintenance, and spare parts. We don’t disappear after delivery.
